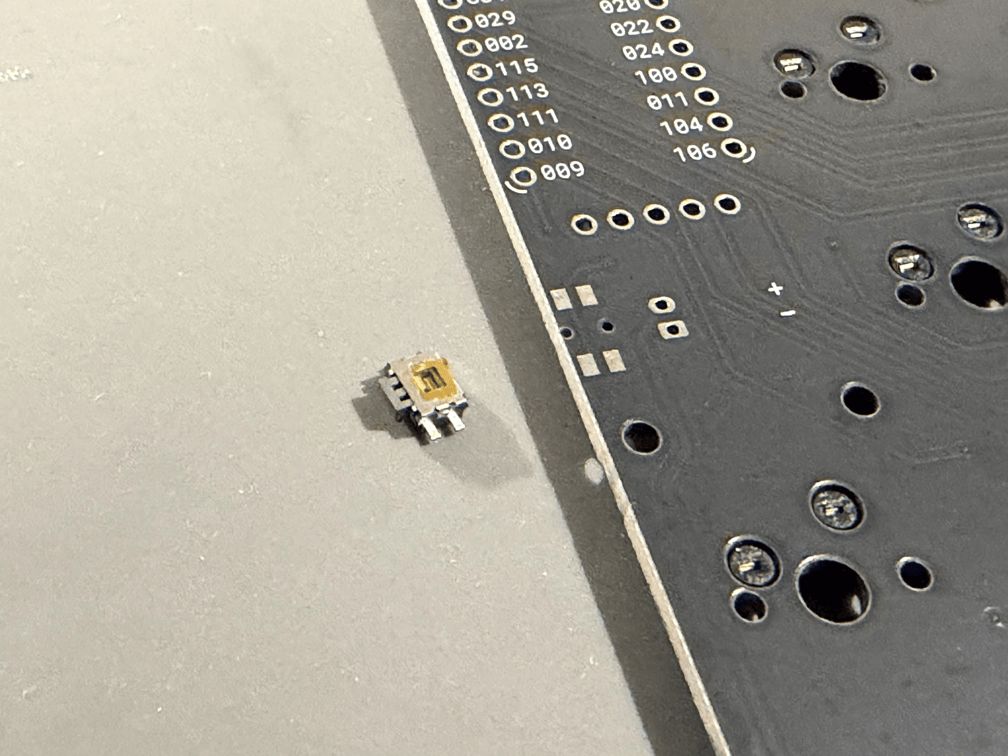

3. Reset Button

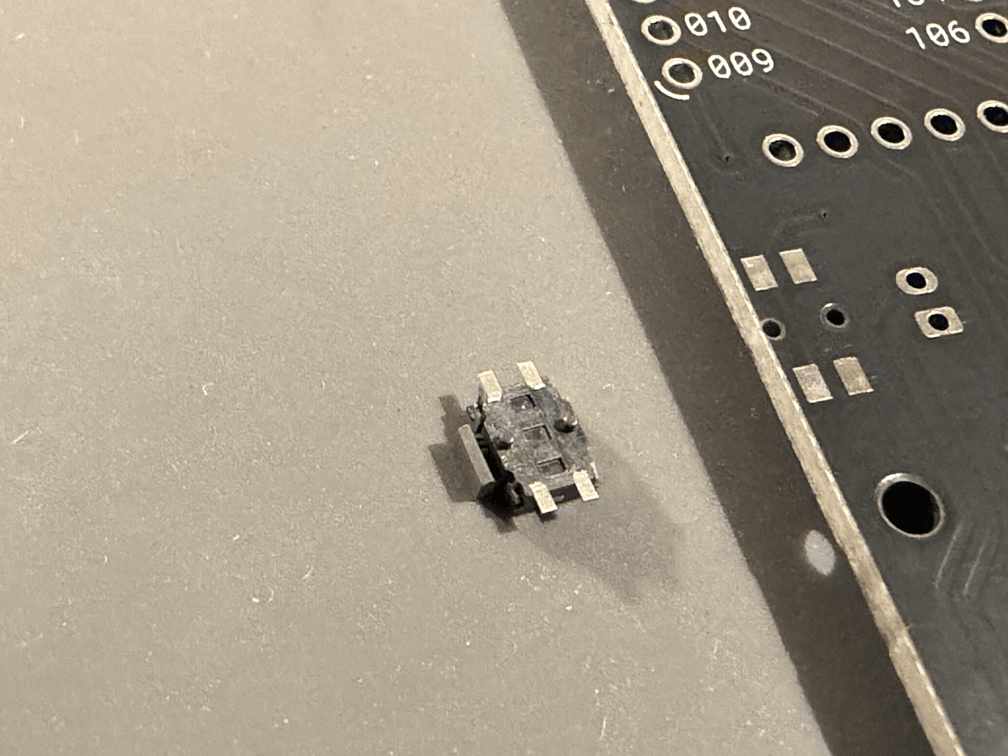

Depending on the model, the button might have small plastic bumps (bosses) on its underside to help with alignment.

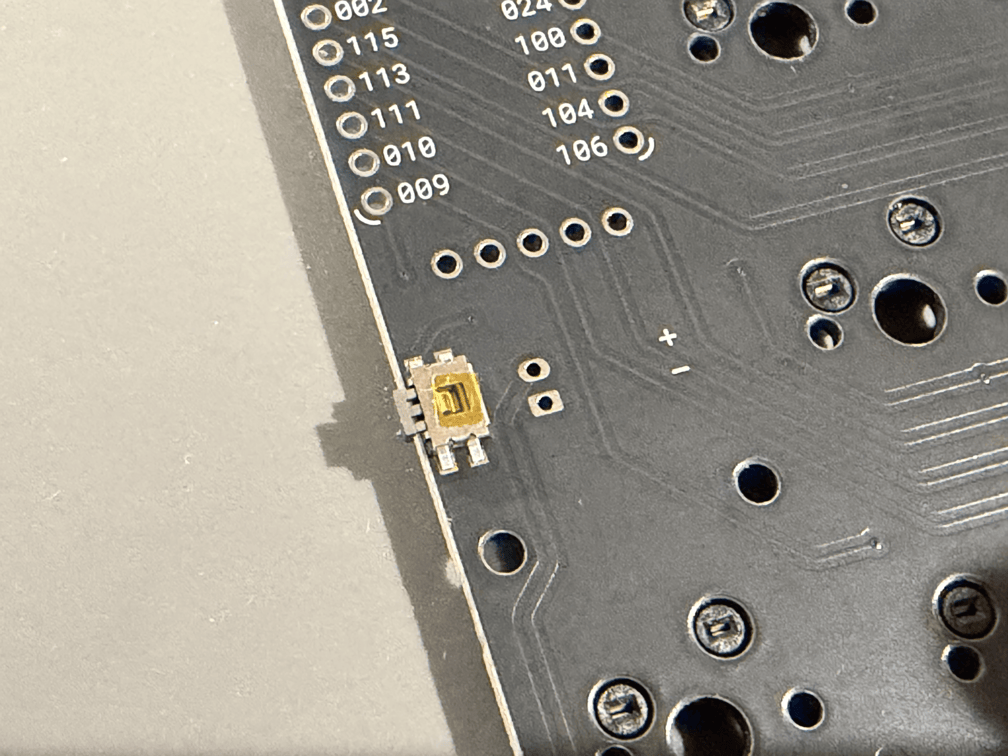

1. Position the button on the top side of the PCB.

   • Ensure the "clicky side" is on the outer edge of the PCB. The button bosses, if present, should drop into the alignment holes.

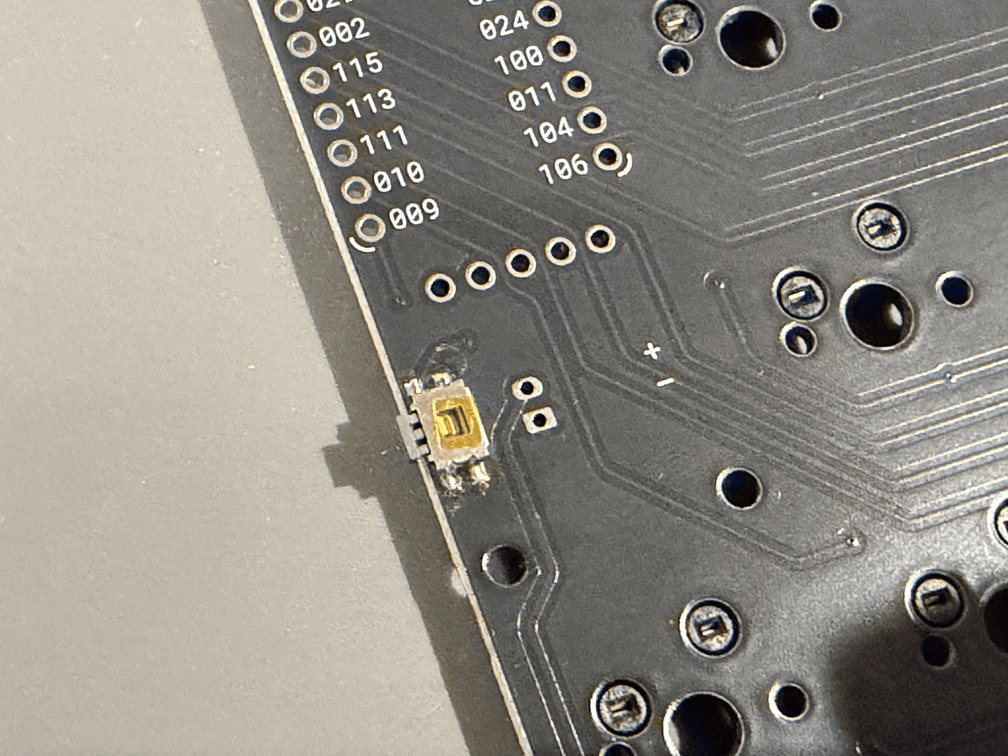

2. Solder all four legs.



3. (Optional) Remove the tape on top of the button.
