Getting Started
If this is your first time soldering, you can read through the Adafruit Guide To Excellent Soldering before starting.
Tools Required
- Soldering iron
- Solder, around 0.5mm diameter for SMD components
- Flux
- Tweezers, for handling small components
- Isopropyl alcohol and a brush, for cleaning flux residue
- Kapton tape or painter's tape, for holding components in place while soldering
- Precision screwdriver set

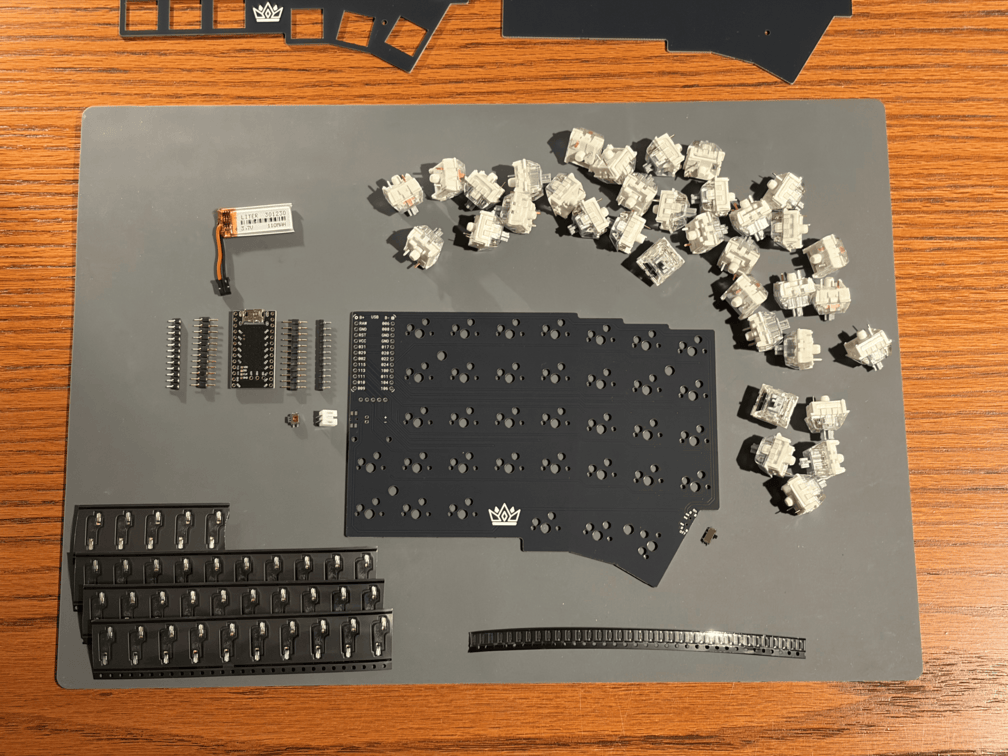

Parts Required
| Part | Quantity | Description |
|---|---|---|
| PCB | 1 | |
| 1N4148W Diode | 35 | |
| Kailh Hot-swap socket | 35 | |
| Panasonic EVQ-PUL02K | 1 | Reset button |
| Alps Alpine SSSS811101 | 1 | Power switch |
| Mill-Max 315-43-112-41-003000 | 2 | Microcontroller female header |
| Mill-Max 350-10-112-00-006000 | 2 | Microcontroller pin header |
| nice!nano | 1 | Microcontroller |
| JST S2B-PH-K-S | 1 | Battery connector |
| TODO | 1 | Display female header |
| Battery | 1 | |
| TODO | 1 | Display pin header |
| nice!view / OLED display | 1 | Display |
| Switch plate | 1 | |
| Switch | 35 | |
| Back plate | 1 | |
| Bumper | 4 | |
| Keycap set | 1 |
