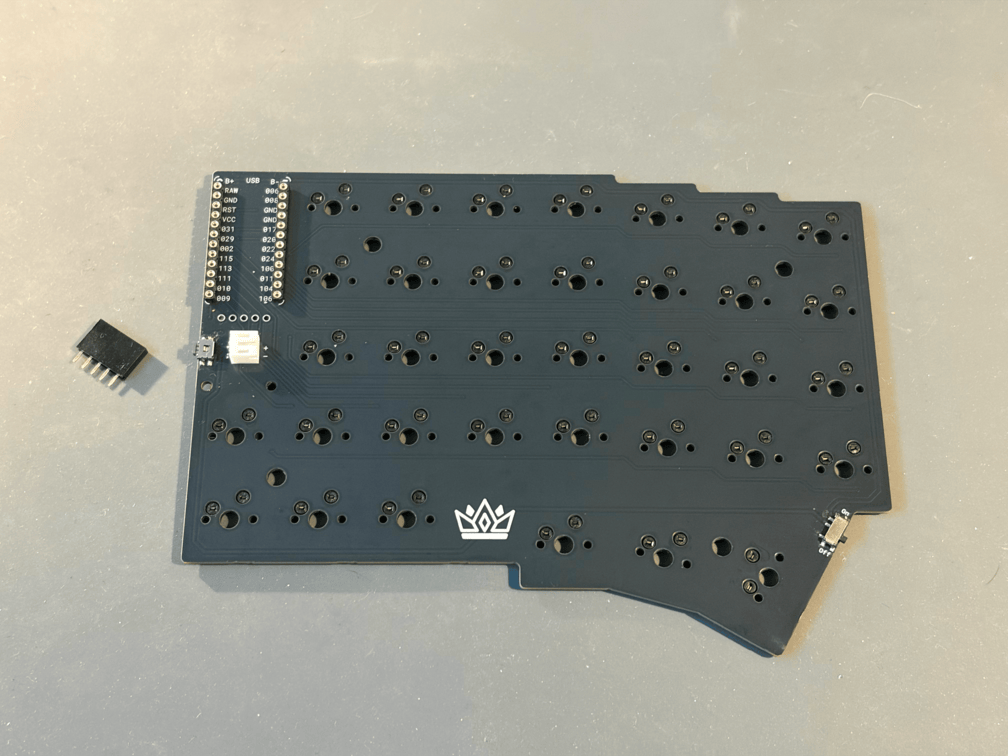

8. Display Female Header

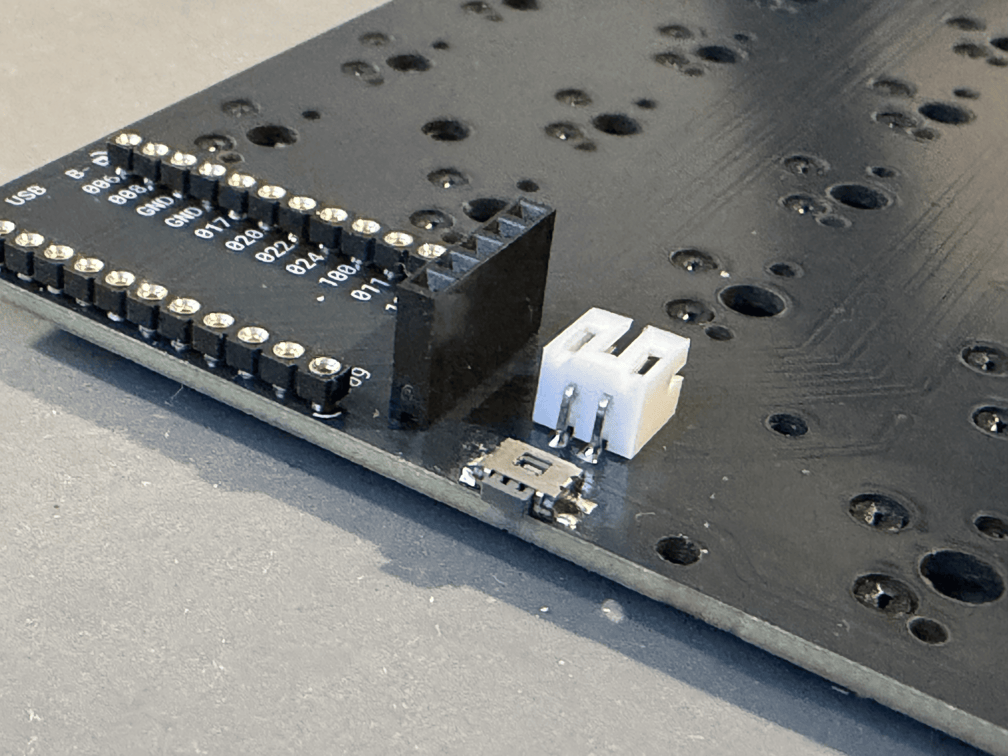

1. Insert the female header into the top side of the PCB.

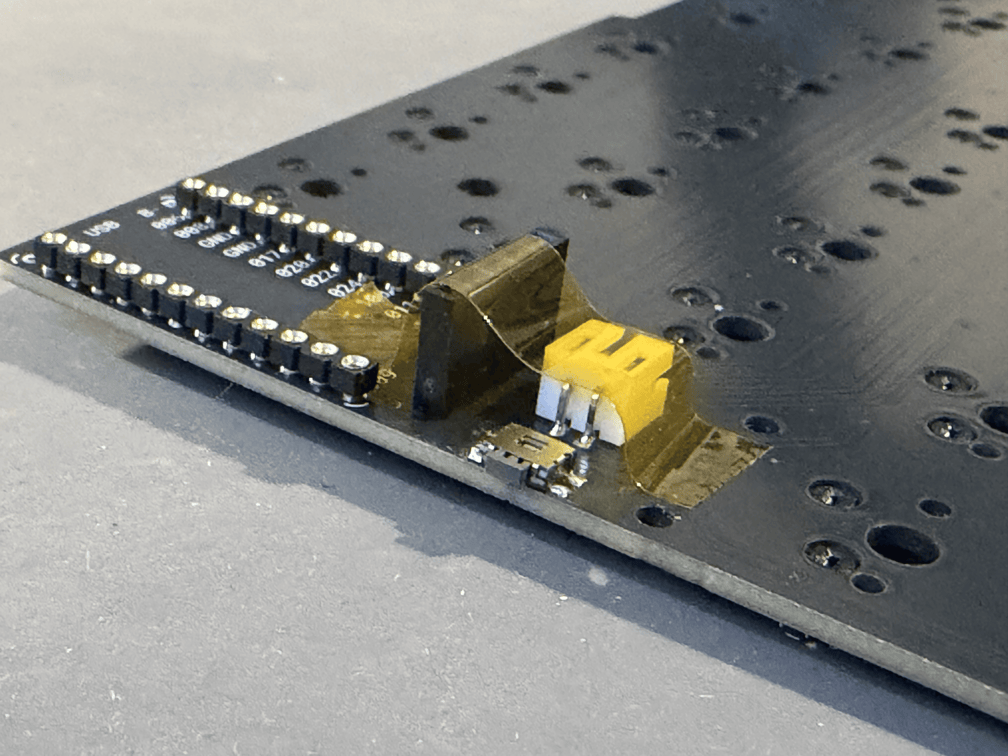

2. Tape down the female header.



3. Flip over the PCB.

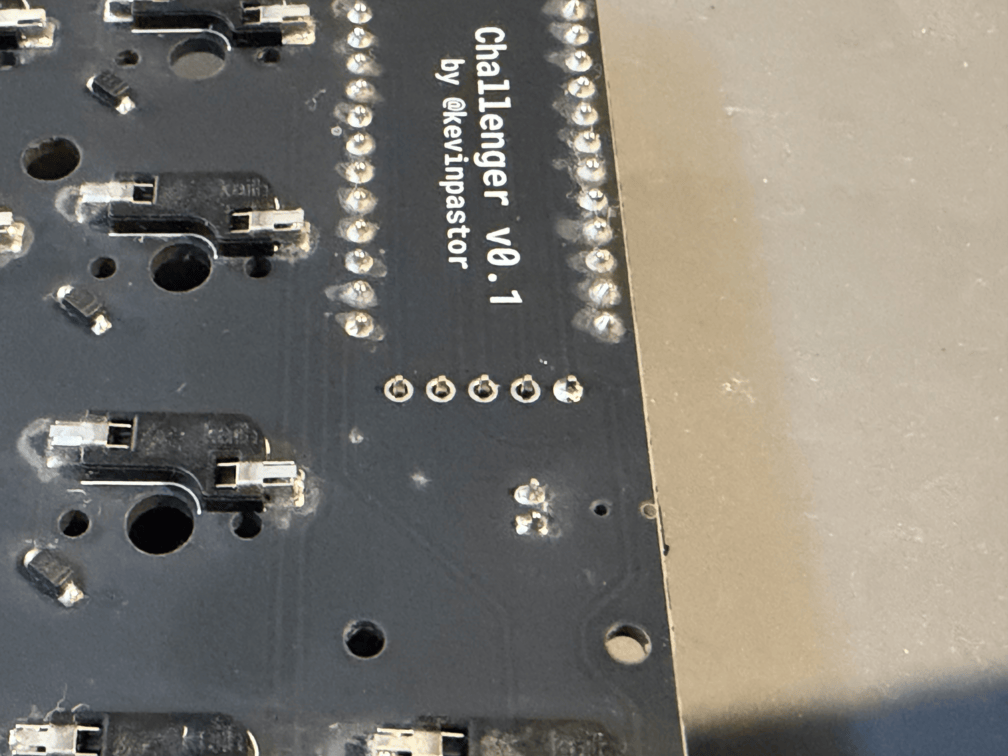

4. Solder the edge pins.

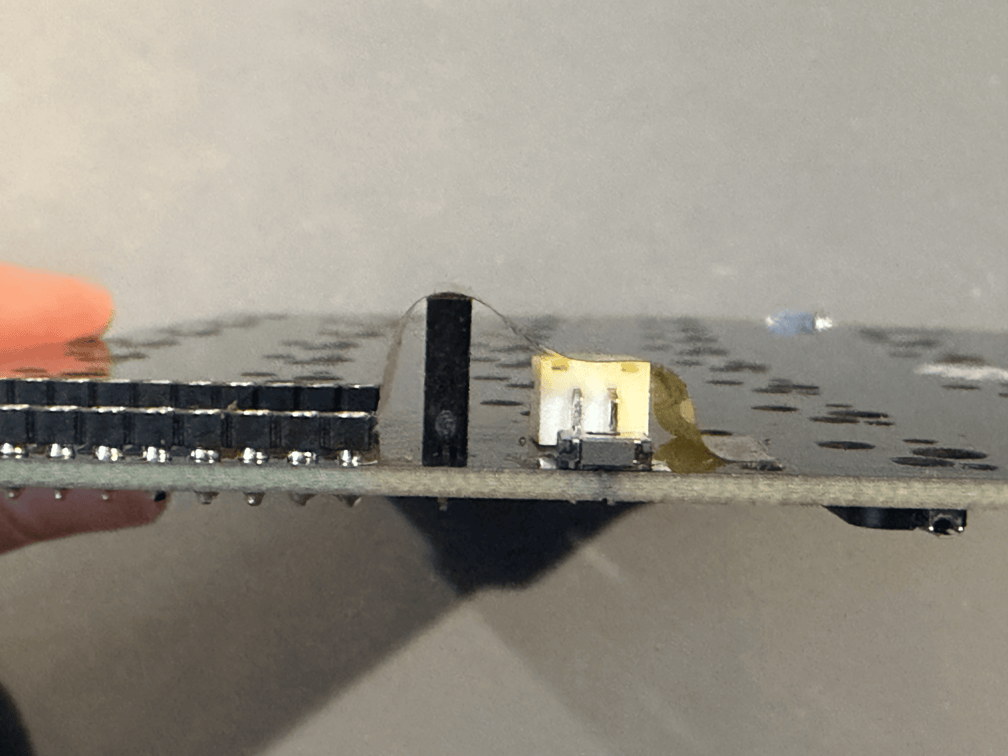

5. Verify the alignment of the female header relative to the PCB.

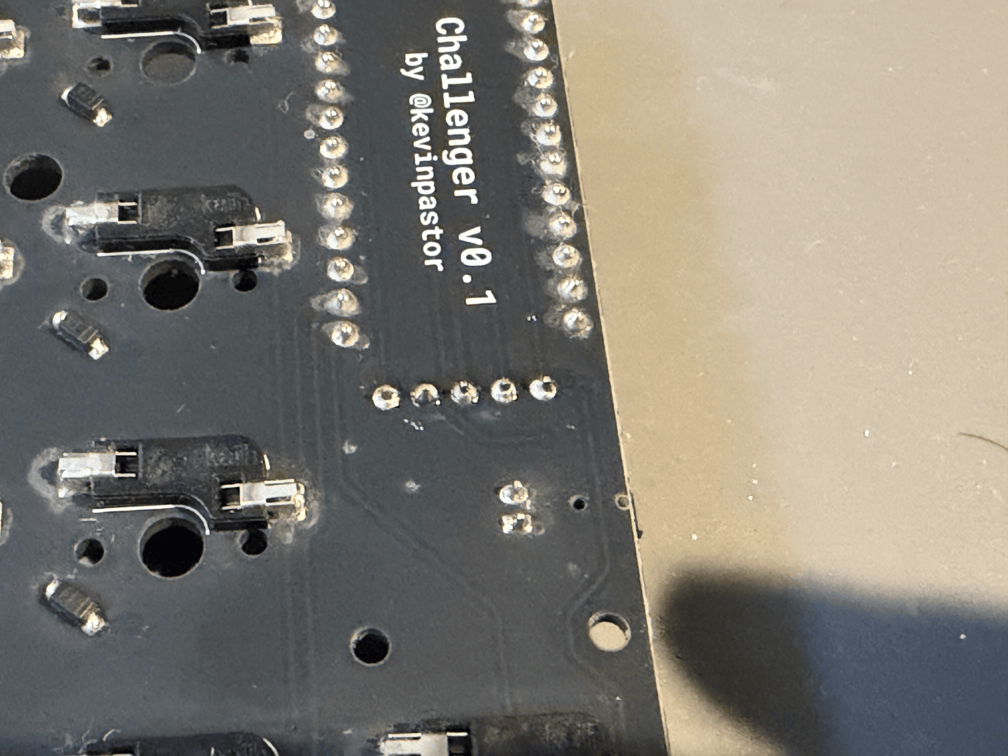

6. Solder the remaining pins.

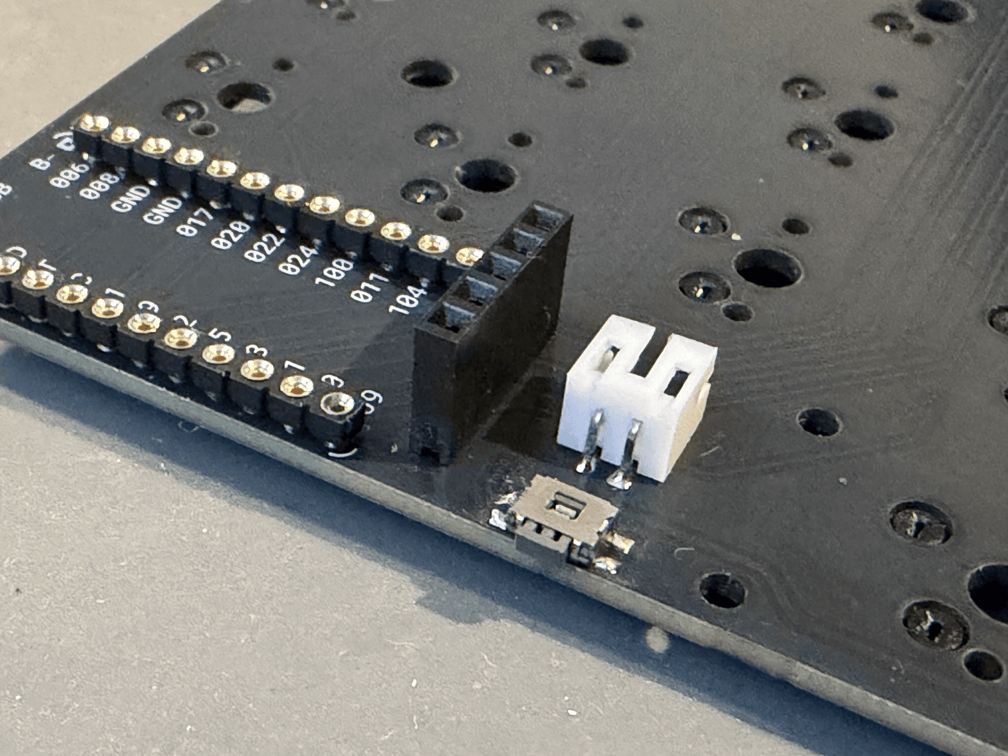

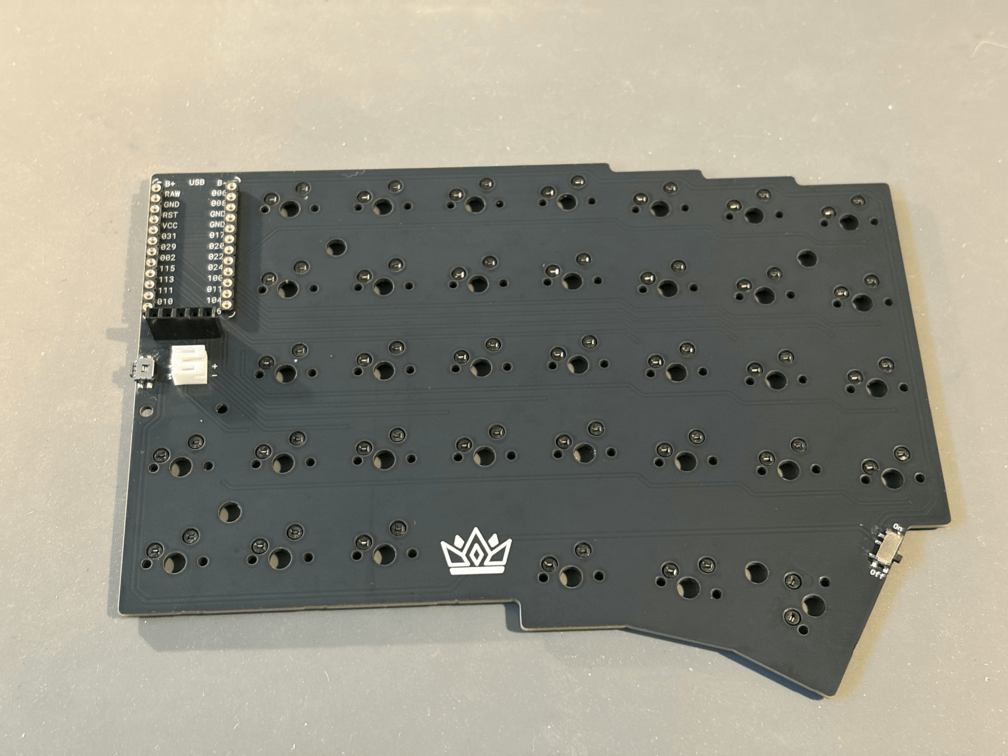

7. Remove the tape.
