7. Battery Connector

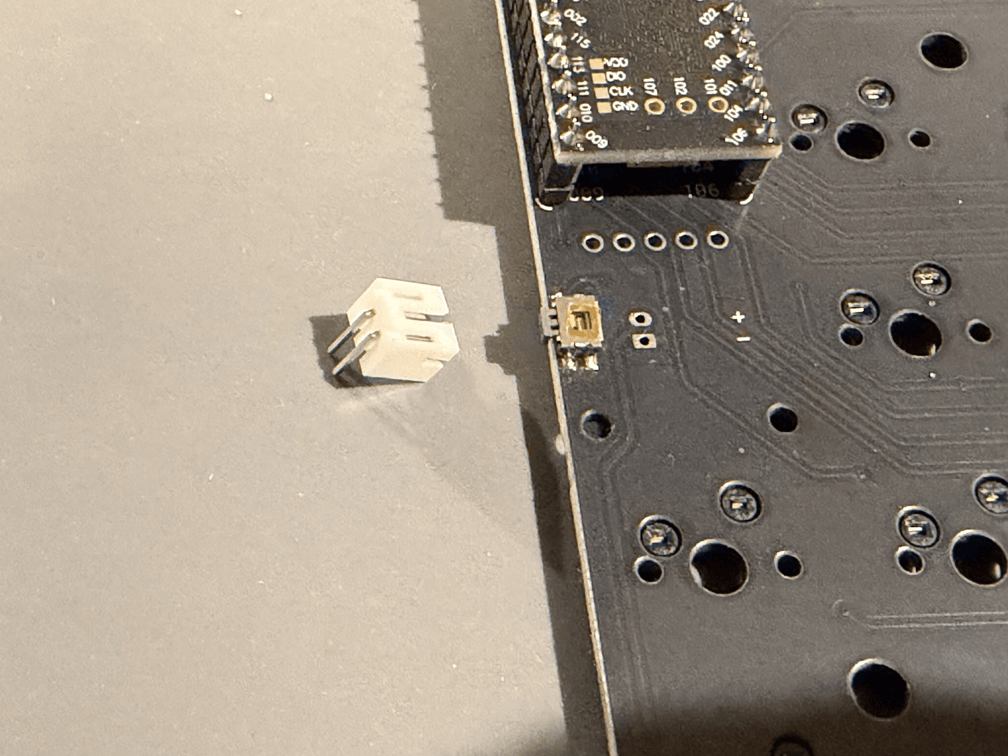

Battery connector overview

  1. Insert the connector on the top side of the PCB.

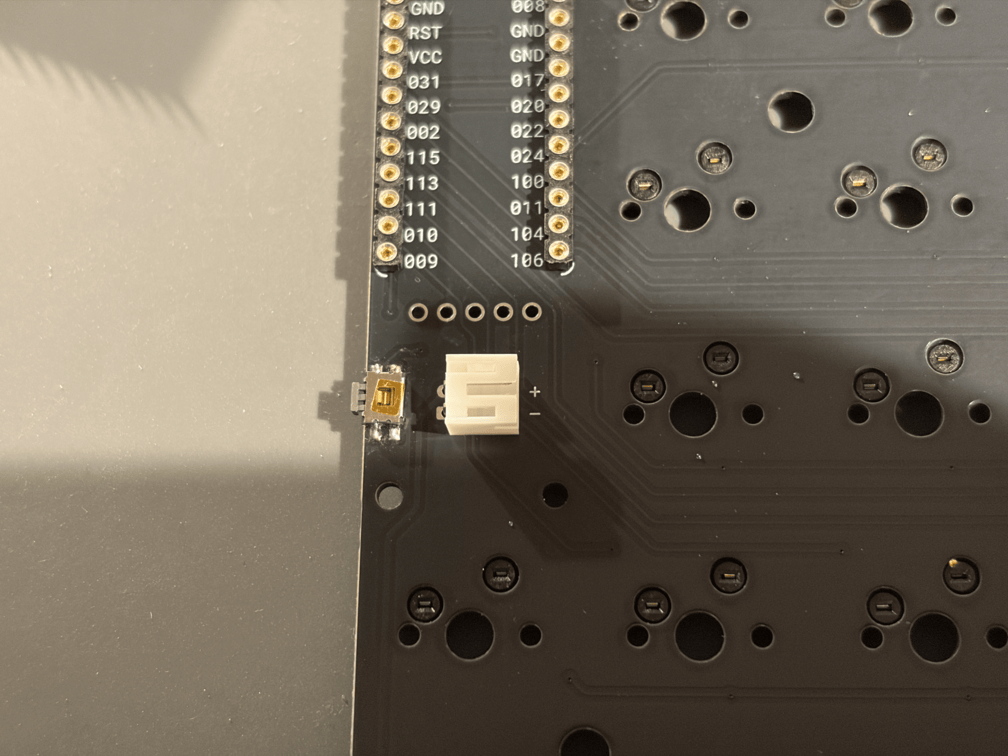

    Battery connector positioned

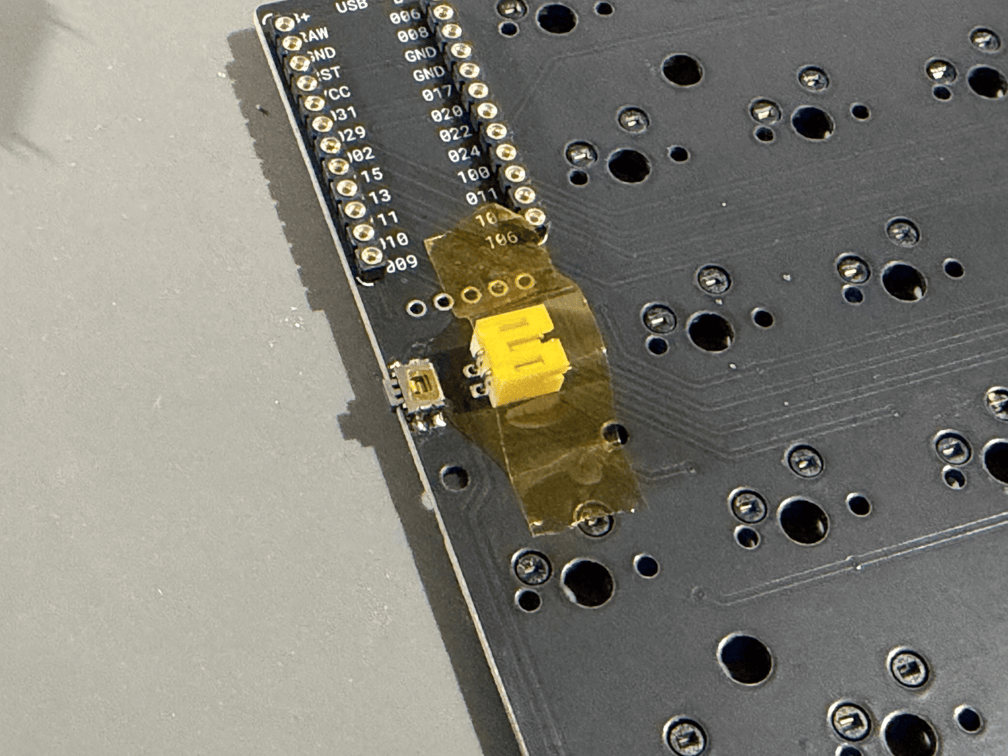

  2. Tape down the connector.

    Battery connector taped

  3. Flip over the PCB.

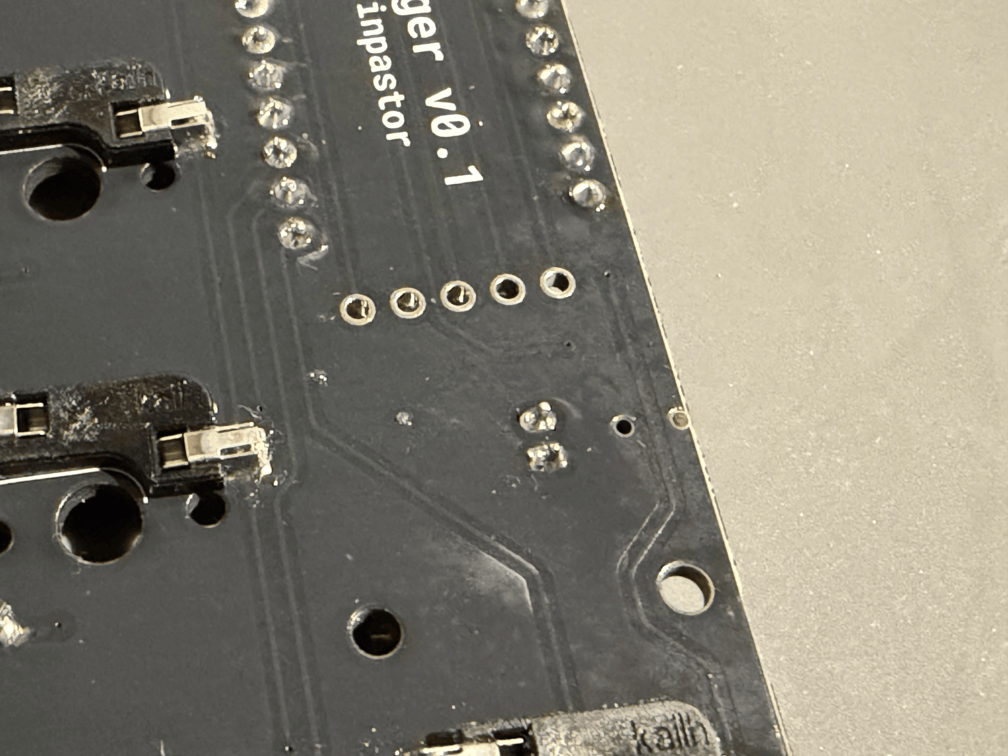

  4. Solder both pins.

    Battery connector soldered

  5. Remove the tape.

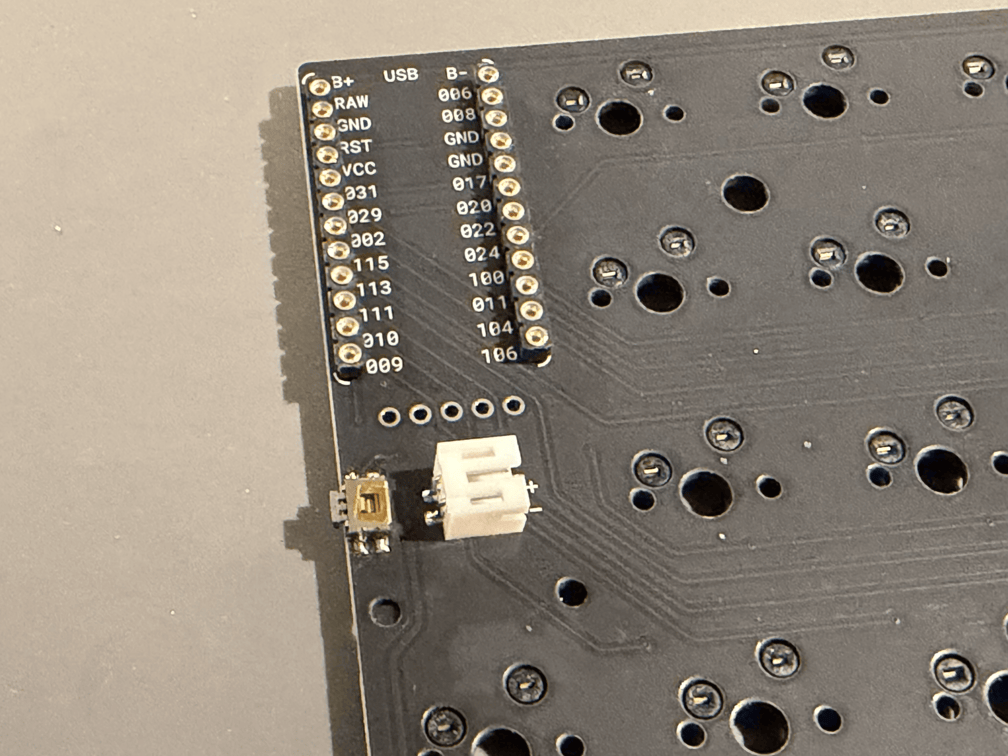

    Battery connector soldered overview
