5. Microcontroller Female Headers

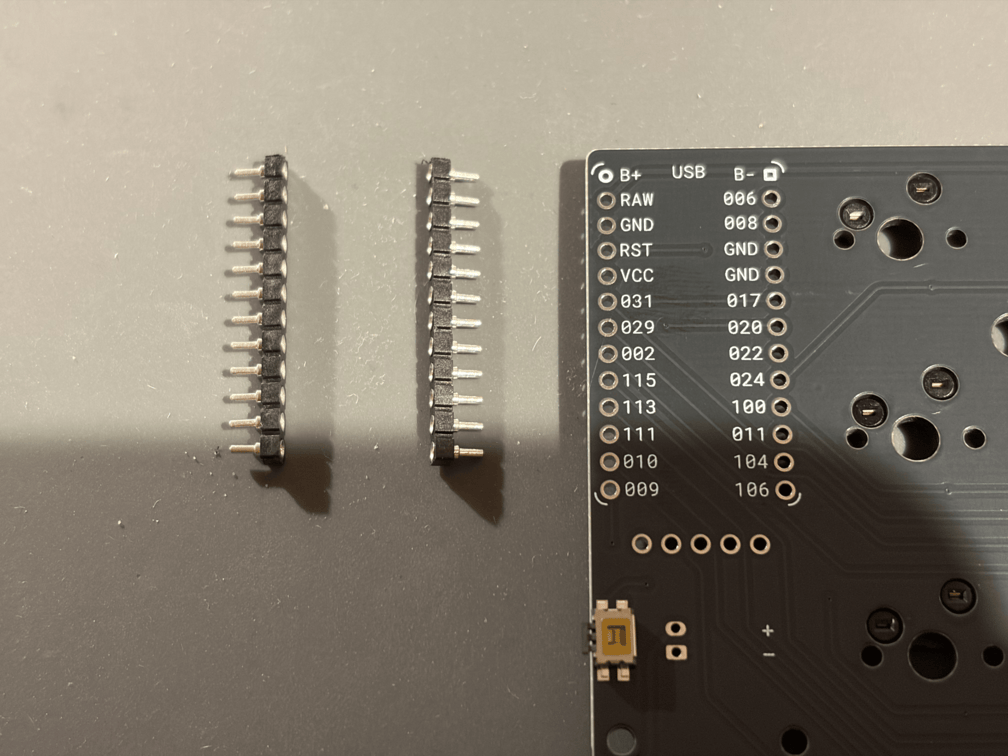

1. Insert both female headers into on the top side of the PCB.

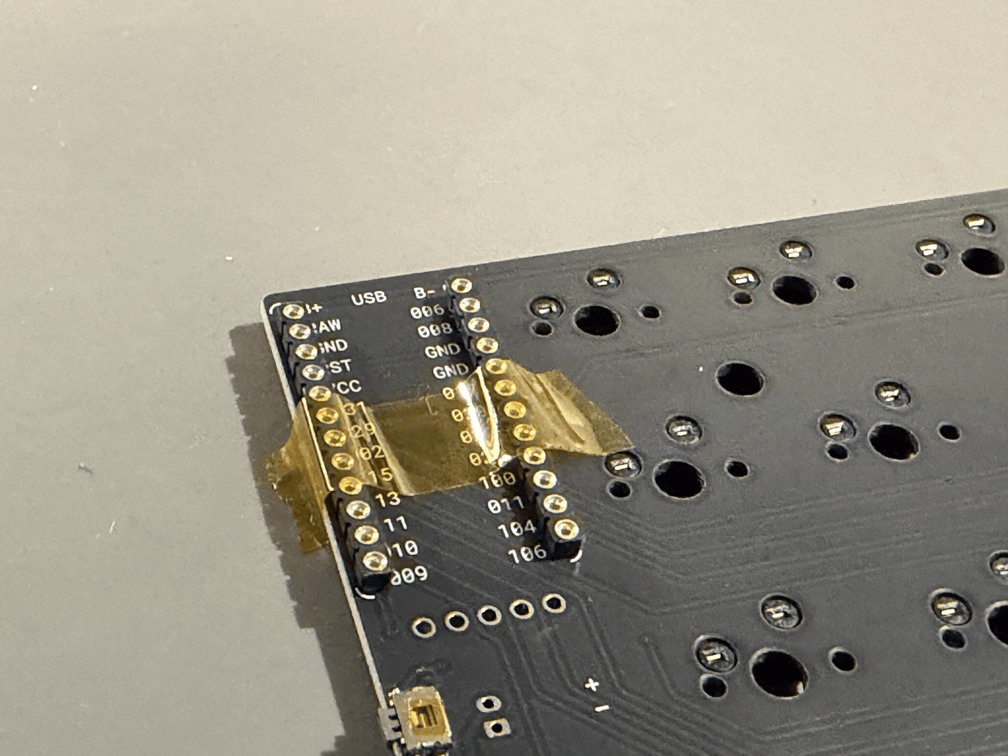

2. Tape down both female headers.



3. Flip over the PCB.

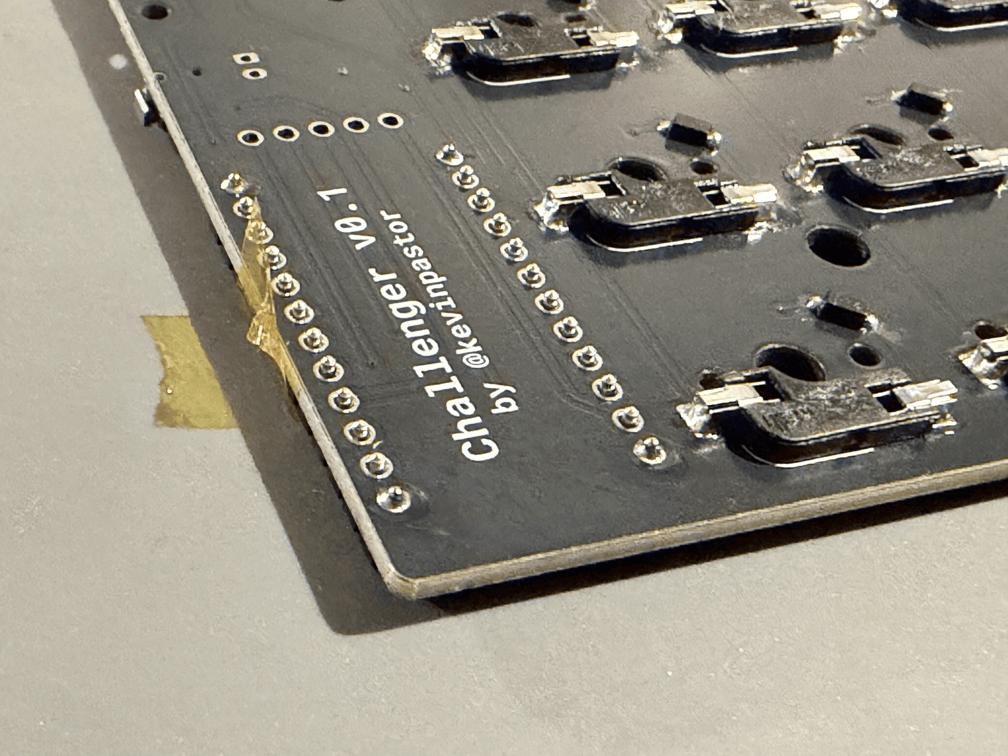

4. Solder the two outer pins of each female header.

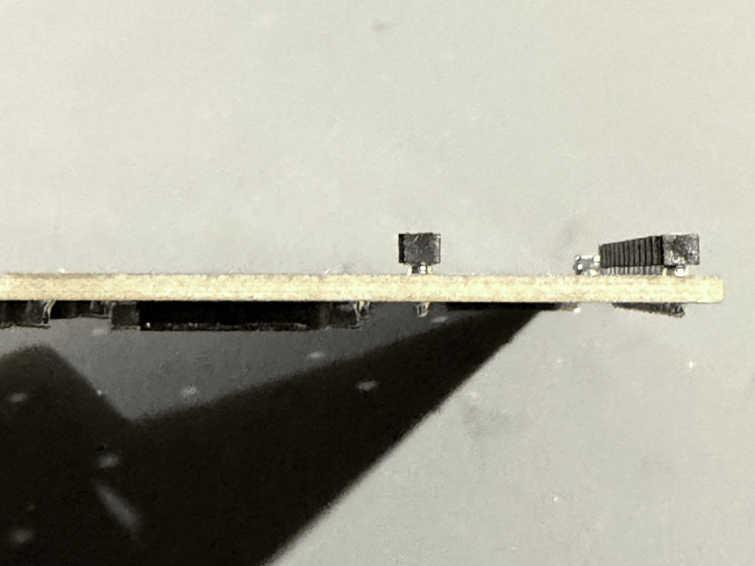

5. Check that the female headers are flush and straight.

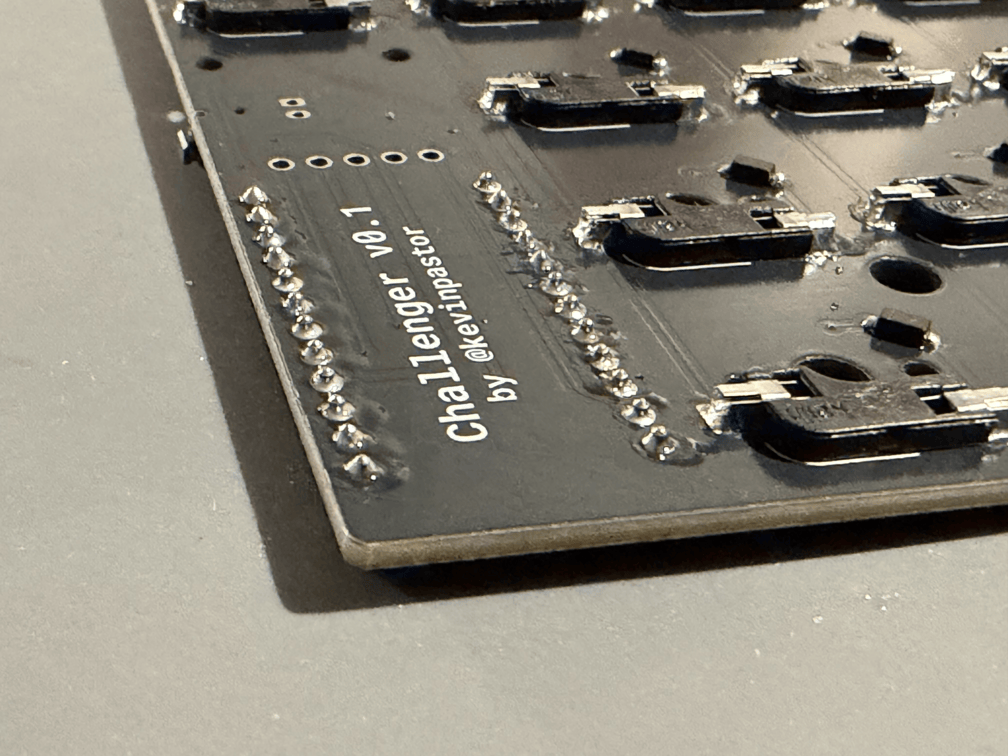

6. Solder the remaining pins.



7. Remove the tape.
